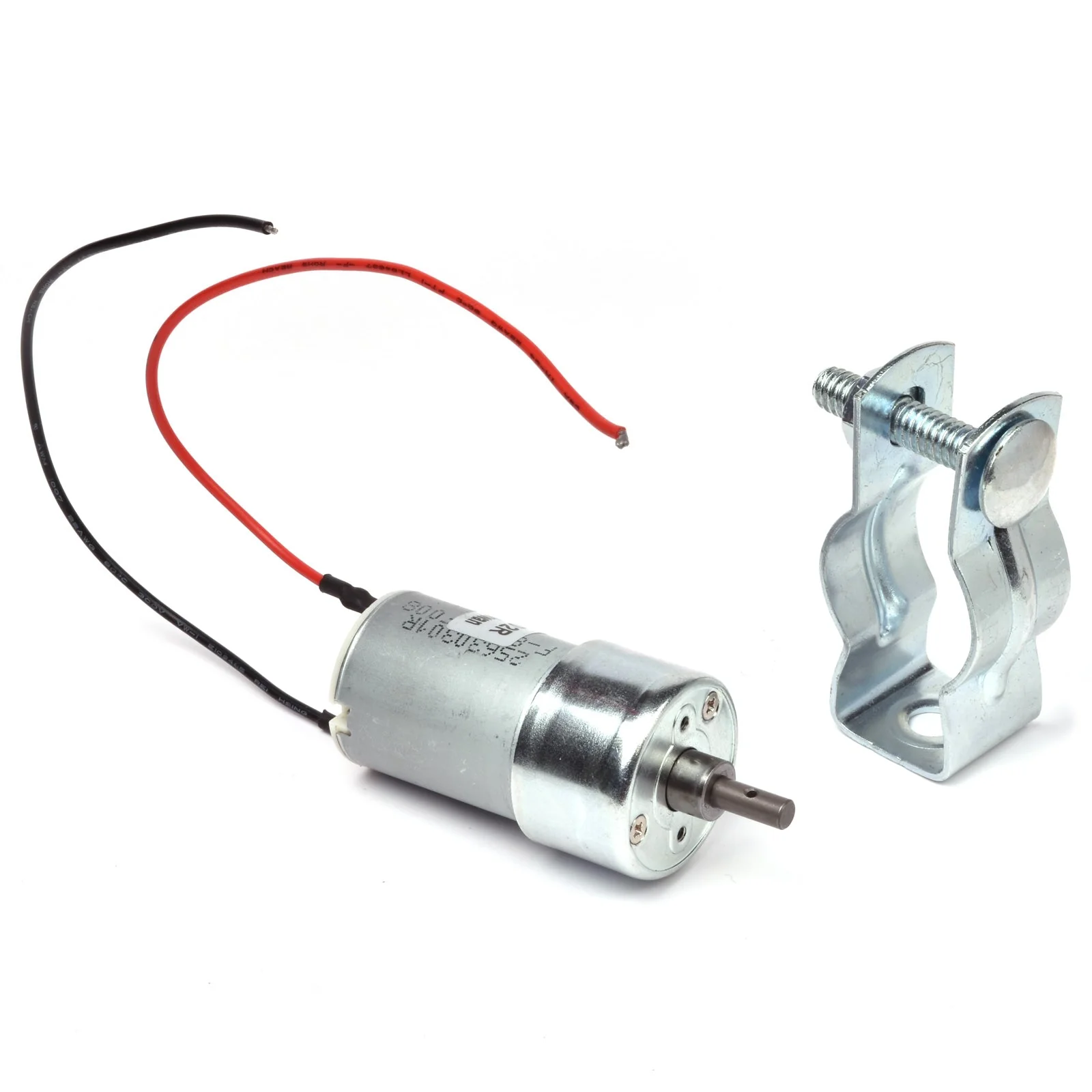

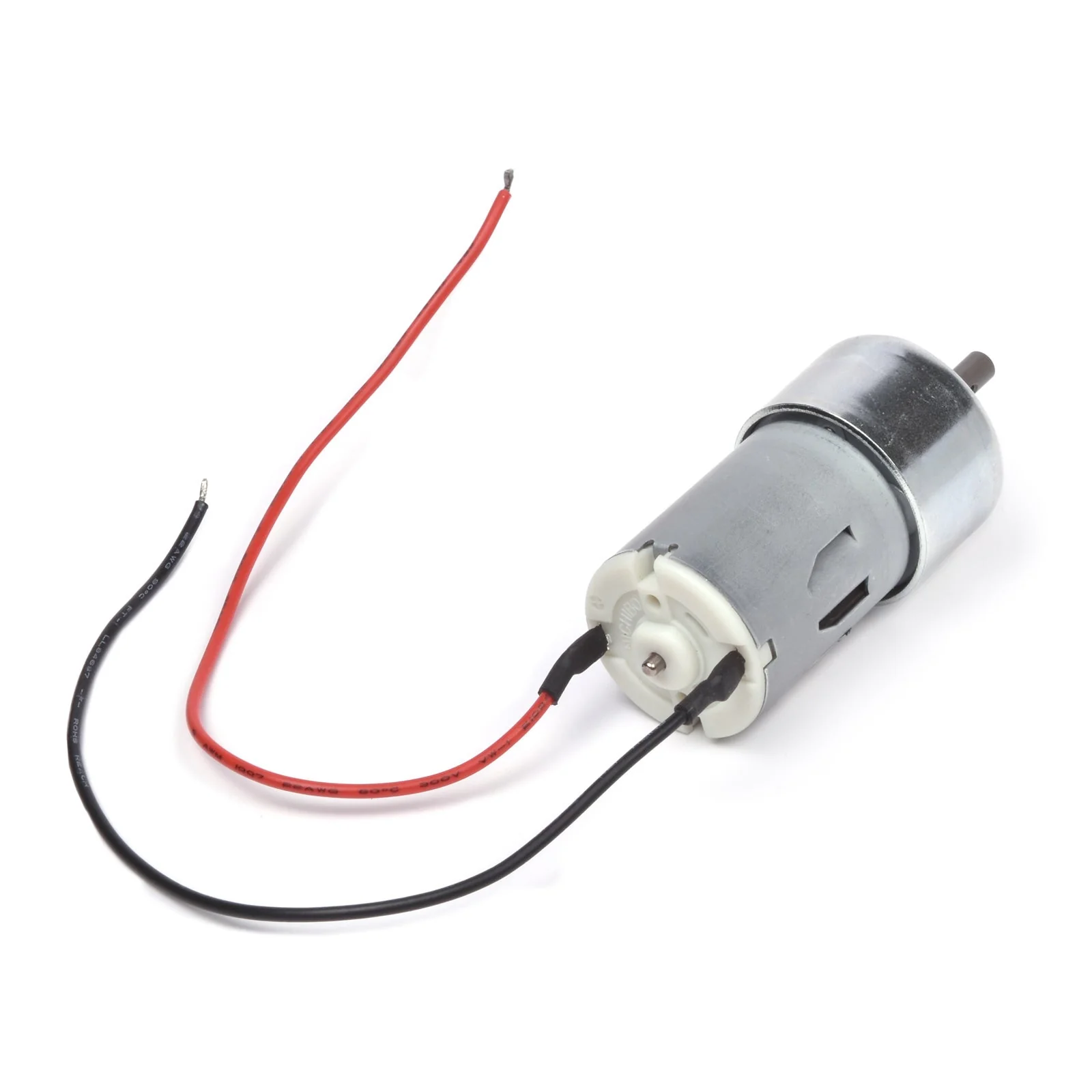

High-Torque Animation Motor, 12VDC

High-Torque 12V Animation Motor is Versatile, Reliable, and Reversible!

Use this permanent magnet 12V variable speed motor to set into motion rotating signs, waterwheels, carousels, railroad turntables, machinery, moving figures and other special effects that will set your diorama or model railroad apart from the rest. While there are many different motors out there, ours has a significant difference that places it above all the others: Ours is reversible*, which means you have so many more options for creating special effects and visual interest in your scenes. This high-torque, lifetime-lubricated motor is designed to provide consistent, reliable service and long life. Depending on power supply, you can set it to run anywhere from 6 to 60 rpm.

Motor Specifications:

12VDC, polarity reversible and DCC compatible

Reduction ratio: 1 to 76.8

Output shaft: steel; 5/32" (4 mm) dia x 3/8" (10 mm) long

Drive shaft hole: .047" (1.2 mm)

Overall size: 1" diameter x 2" long, plus 9/16" output shaft and collar

Leads: 6" long; one red (+) and one black (-); pre-tinned

*When wired with our optional #83257 Toggle Switch
